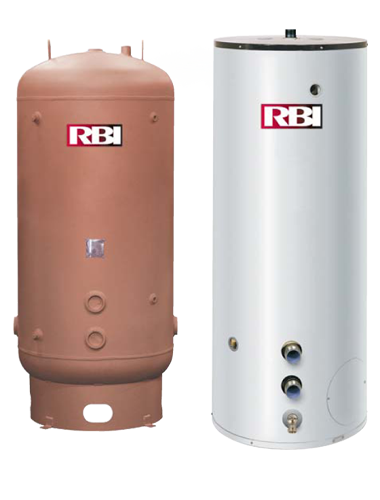

STORAGE TANKS

RBI storage tanks are designed to provide large volume, continuous or intermittent hot water supply while maintaining a constant outlet temperature. Ranging in size from standard 200 to 1,000 gallon capacities to custom-built 3,000-gallon units, RBI hot water storage tanks offer complete application flexibility and are the perfect complement to RBI’s high-efficiency boilers and hot water heaters.

Available in both jacket/insulated and bare configurations, all RBI hot water storage tanks are ASME certified and use the latest advancements in interior tank lining technology for maximum performance and durability. All RBI glass lined tanks are manufactured using Ultonium® lining which is specifically formulated for hot water applications and provides an ultra-durable, wear-resistant lining that minimizes the effects of high temperatures associated with water heating

features and benefits
  • ASME Certified HLW Stamp
  • Ultonium® Vitreous Glass Lining
  • 2" True Dieletric NPT Fittings
  • 125 PSI Certified Working Pressure
  • Magnesium Anode Rods
  • Heavy Gauge Steel Construction
  • 2" Non-CFC Foam Insulation
  • Durable Heavy Gauge Steel Jacket
  • 5-Year Warranty / 10-Year Warranty (Double Glass Lining Only)
Storage Tanks-Bare-Vertical Glass Lined
Input Output Overall Length Width
V200B 200 79.5" 28"
V240B 240 89" 30"
V310B 310 82" 36"
V435B 435 85" 42"
V505B 505 97" 42"
V675B 675 100" 48"
V860B 860 124" 48"
Storage Tanks-Jacketed-Vertical Glass Lined
Input Output Overall Length Width
V200J 200 78" 32"
V240J 240 83" 34"
V310J 310 86" 40"
V435J 435 89" 46"
V505J 505 101" 46"
V675J 675 104" 52"
V860J 860 128" 52"
