Futera 3
Heat Exchanger | Copper |
---|---|
Size Range | 500 - 1,999 MBH |
AHRI Boiler Efficiency | 85.6% |
Turndown | 4:1 |
Application | Primary/Secondary |
As part of the Futera line – RBI's flagship series of boilers and hot water heaters that offer the most versatile, durable and energy efficient units across both near and full condensing offerings – the gas-fired Futera III features full modulation with 4:1 turndown while supplying the precise amount of heat necessary to maintain desired building temperature by matching heating demand without overfiring or wasting energy.
These dependable, easy-to-service boilers feature rugged construction and sleek, stainless steel jacket design. With models ranging from 500-1999 MBH, all Futera III units come equipped with HeatNet 3.0 boiler control software, ensuring the highest operating efficiencies of any domestic boiler and hydronic heating system on the market.
![Futera 3 Boiler](Themes/RBITheme/img/RBI/RBI 2022 Product Photos/Futera III-FT-RT.png)
features and benefits

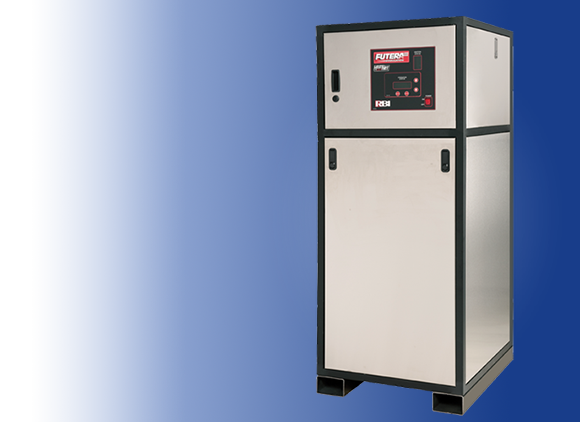

![Futera 3 Background](Themes/RBITheme/img/RBI/FuteraIII-Blue.png)
- 500 - 1,999 MBH
- Full Modulation (4:1)
- Copper 4-Pass Heat Exchanger (160 psi)
- HEATNET Integrated Control Platform
- Symmetrically Air/Fuel Coupled
- Patented Turbo Pilot Sure-fire Ignition
- Modbus, LonWorks and BACnet BMS Integration
- Category II and IV Venting
- Honeywell RM7800 Flame Safeguard
- Cast Iron Headers (Boilers)
- Bronze Headers (Water Heaters)
- Mounted & Wired Flow Switch
- Mounted & Wired LWCO
- Low Nox
- Space Saving Footprint
Have Questions?
HEATNET 3.0
Digital Touch Screen Programming
Lead/Lag Cascade (16 Units)
Mixed-Size Unit Communication
Adaptive Modulation
Circular Pump/VFD/Valve Control
BMS Integration
Freeze Protection & Delta T Monitoring
Hybrid/base Load Capability
Priority Boiler Control
Domestic Hot Water Communication
Web-Based Remote Monitoring/Dashboard
Diagnostics and Troubleshooting
Set Points
Exclusive Remote Monitoring Capability with HEATNET Online
futera III Ratings and Dimensions*
Input | Boiler | Output | Unit | Depth | Unit | Width | Unit | Height | ||
---|---|---|---|---|---|---|---|---|---|---|
Module | MBH | kW | MBH | kW | In. | mm | In. | mm | In. | mm |
MB/MW 500 | 500 | 147 | 428 | 125 | 39 | 991 | 25-1/8 | 638 | 48-1/2 | 1231 |
MB/MW 750 | 750 | 220 | 641 | 188 | 39 | 991 | 25-1/8 | 638 | 55 | 1397 |
MB/MW 1000 | 1000 | 293 | 853 | 250 | 39 | 991 | 25-1/8 | 638 | 61-1/2 | 1562 |
MB/MW 1250 | 1250 | 366 | 1066 | 312 | 44 | 1118 | 29-1/8 | 740 | 55-1/2 | 1409 |
MB/MW 1500 | 1500 | 440 | 1278 | 374 | 46-13/16 | 1189 | 29-1/8 | 740 | 60 | 1524 |
MB/MW 1750 | 1750 | 513 | 1491 | 437 | 47-3/16 | 1199 | 29-1/8 | 740 | 64-1/2 | 1938 |
MB/MW 2000 | 2000 | 586 | 1704 | 499 | 47-3/16 | 1199 | 29-1/8 | 740 | 69 | 1752 |
Flue Vent* | Air Intake | Connections | Shipping | Weight | ||||
---|---|---|---|---|---|---|---|---|
Module | Cat I Negative | Cat II Negative | Cat IV Positive | Gas In. | Water In. | Lbs | Kg | |
MB/MW 500 | N/A | 6" | 5" | 8" | 1" | 2" | 600 | 272 |
MB/MW 750 | 8" | 6" | 5" | 8" | 1" | 2" | 695 | 315 |
MB/MW 1000 | 9" | 7" | 6" | 8" | 1" | 2" | 735 | 333 |
MB/MW 1250 | 10" | 8" | 6" | 10" | 1-1/4" | 2-1/2" | 850 | 386 |
MB/MW 1500 | 10" | 8" | 8" | 10" | 1-1/4" | 2-1/2" | 927 | 421 |
MB/MW 1750 | 12" | 10" | 10" | 12" | 1-1/2" | 2-1/2" | 928 | 421 |
MB/MW 2000 | 12" | 10" | 10" | 12" | 1-1/2" | 2-1/2" | 1100 | 499 |
Note: Certified South Coast Air Quality Management (SCAQMD) Protocol Rule 1146.2; Ventura County APCD 74.11.1
* Rating reflect boilers only. For boiler efficiency information please visit www.ahridirectory.org
Literature
Piping Diagram
- BOILER PROTECTION OPTION FOR VARIABLE LOW TEMP THERMOSTATIC MIXING VALVE (H-18 Rev 4).pdf
- SINGLE BOILER, PRIMARY & SECONDARY (H-1 Rev 5).dwg
- SINGLE BOILER, PRIMARY & SECONDARY (H-1 Rev 5).pdf
- SINGLE BOILER, PRIMARY & SECONDARY, LOW TEMP HEAT PUMP & SWIMMING POOL (H-3 REV 6).dwg
- SINGLE BOILER, PRIMARY & SECONDARY, LOW TEMP HEAT PUMP & SWIMMING POOL (H-3 REV 6).pdf
- SINGLE BOILER, PRIMARY & SECONDARY, REVERSE RETURN (H-15 Rev 6).dwg
- SINGLE BOILER, PRIMARY & SECONDARY, REVERSE RETURN (H-15 Rev 6).pdf
- HeatNet Application System Diagrams (HASD-2).pdf
