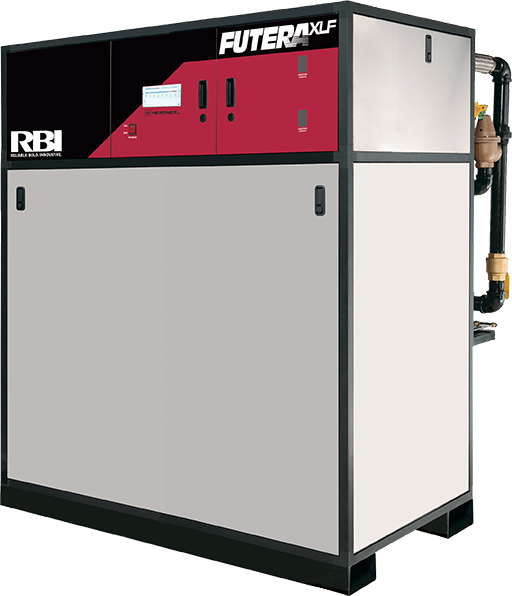

Futera XLF
| Heat Exchanger | Copper |
|---|---|
| Size Range | 2,500 - 10,000 MBH |
| AHRI Boiler Efficiency | 85.9% |
| Turndown | 5:1 |
| Application | Primary/Secondary |

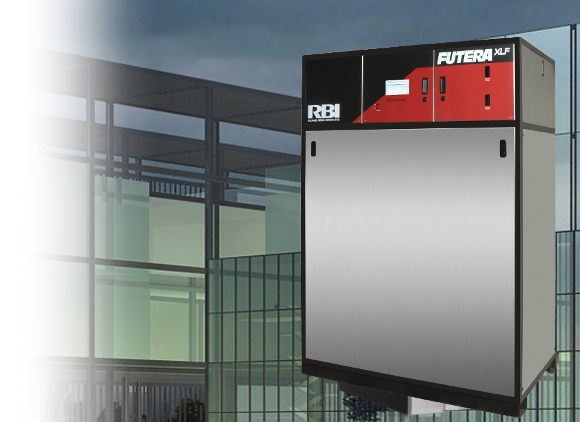

Whether retrofitting an existing large capacity boiler or a new installation, RBI’s Futera XLF gives you the power, performance and flexibility to fit any commercial boiler application.
Available in 2,500-10,000 MBH, the Futera XLF has operating efficiencies up to 88% and turndown ratios of 5:1 for maximum energy optimization. The Futera XLF provides advanced, efficient boiler performance with unmatched outputs, all within a compact footprint unparalleled by any other boiler on the market, and units are backed by RBI’s reliability and serviceability.
The Futera XLF features integral HEATNET 3.0 boiler control software that is a boiler management system, capable of networking up to sixteen units without requiring any external boiler control panel. With such advanced performance in a small space, even older boiler systems can benefit from the addition of contemporary efficiency for existing heating or domestic hot water systems. For new construction, the Futera XLF provides a modular configuration with an output unmatched by today’s market.
Size Matters
XLF units are leading the industry in both performance and cost-saving features. Get more of your facility back with XLF. Premium copper-fin efficiencies and more useful space in the building. Follow the leader.
- Industry Leading Footprint
- Full-fire Operation at Significantly Reduced Gas Pressures
- Reduced Lead Times
- Increased Outputs at Less Cost
features and benefits
- 2,500 -10,000 MBH
- Full Modulation (5:1)
- Copper 4-Pass Heat Exchanger (160 psi)
- HEATNET 3.0 Integrated Control Platform
- Symmetrically Air/Fuel Coupled
- Patented Turbo Pilot Sure-fire Ignition
- Modbus, LonWorks and BACnet BMS Integration
- Category I, II and IV Venting
- Honeywell RM7800 Flame Safeguard
- Cast Iron Headers (Boilers)
- Bronze Headers (Water Heaters)
- Mounted & Wired Flow Switch
- Mounted & Wired LWCO
- Low Nox
- Large Output - Space Saving Footprint
Have Questions?

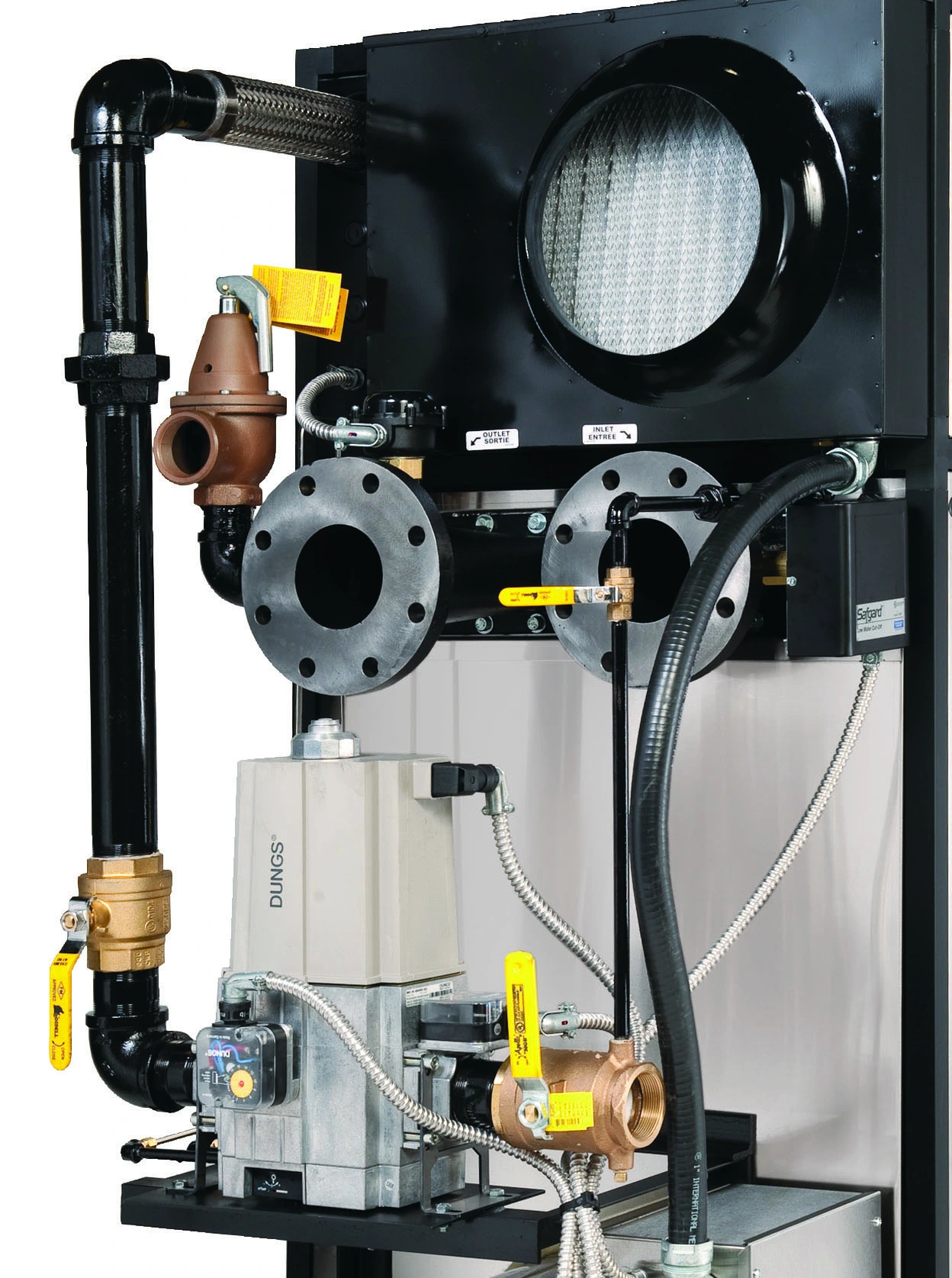

Gas Train

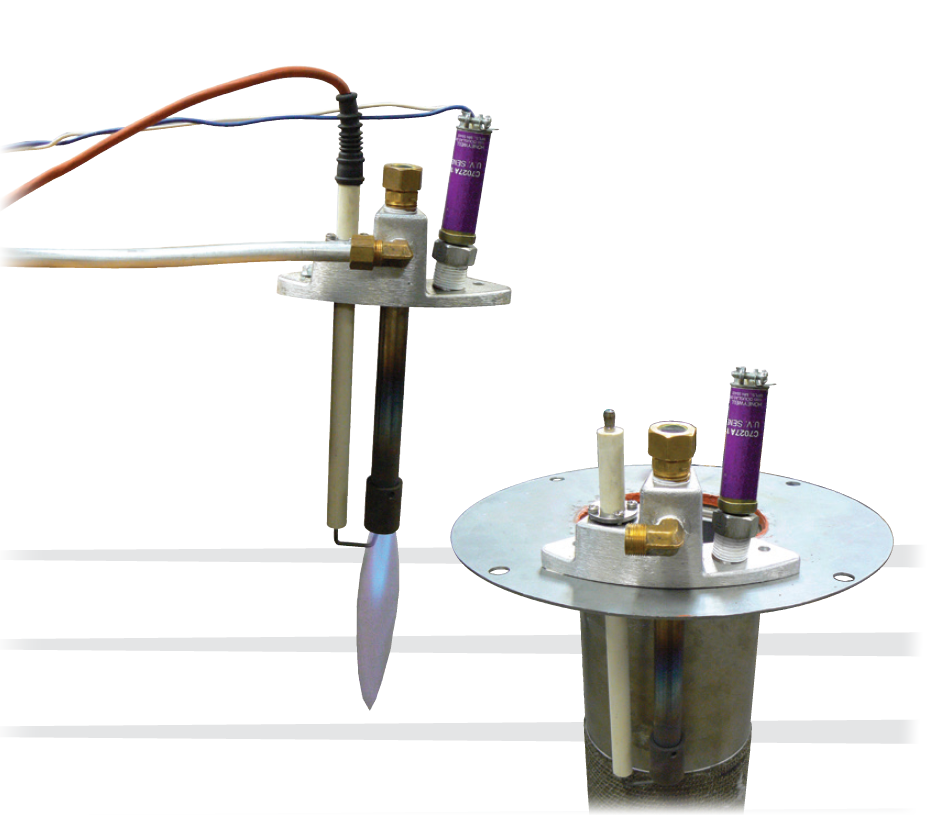

The Turbo Pilot®
Reliability at its best the Futera Series independent Turbo Pilot system with UV detection is far more durable and reliable than any competitive ignition system available today. At 8,000 BTU’s the Turbo Pilot provides a sure-fire source for burner ignition while providing continuous performance feedback through the HEATNET control platform.
Symmetric Air/Fuel Coupling
RBI’s state-of-the-art air/fuel coupling combustion control system is instantly responsive and completely adaptable. This unique boiler combustion control system is designed to keep the Futera running safe, clean and efficient. The system reacts to changes in air and instantly compensates fuel supply by adjusting input to maintain a constant air/fuel mixture across the modulation range. The unique design of the air/fuel mixing system ensures a complete and consistent air/ fuel mixture to the burner which increase combustion efficiency and repeatability all while maintaining low emissions.
HEATNET 3.0
Digital Touch Screen Programming
Lead/Lag Cascade (16 Units)
Mixed-Size Unit Communication
Adaptive Modulation
Circular Pump/VFD/Valve Control
BMS Integration
Freeze Protection & Delta T Monitoring
Hybrid/base Load Capability
Priority Boiler Control
Domestic Hot Water Communication
Web-Based Remote Monitoring/Dashboard
Diagnostics and Troubleshooting
Set Points
Exclusive Remote Monitoring Capability with HEATNET Online
futera XLF ratings and Dimensions*
| Input | Boiler | Output | Unit | Depth | Unit | Width | Unit | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | MBH | kW | MBH | kW | In. | mm | In. | mm | In. | mm |
| MB/MW 2500 | 2500 | 733 | 2148 | 629 | 31-1/8" | 791 | 29-1/8" | 740 | 55-1/2" | 1410 |
| MB/MW 3000 | 3000 | 879 | 2622 | 768 | 31-1/8" | 791 | 29-1/8" | 740 | 60" | 1524 |
| MB/MW 3500 | 3500 | 1026 | 3052 | 894 | 31-1/8" | 791 | 29-1/8" | 740 | 64-1/2" | 1638 |
| MB/MW 4000 | 4000 | 1172 | 3480 | 1020 | 31-1/8" | 791 | 29-1/8" | 740 | 69" | 1753 |
| MB 5000 | 5000 | 1465 | 4255 | 1247 | 31-1/8" | 791 | 29-1/8" | 740 | 78" | 1981 |
| MB 6000 | 6000 | 1758 | 5244 | 1537 | 68-3/8" | 1737 | 55-1/3" | 1406 | 59-15/16" | 1522 |
| MB 8000 | 8000 | 2345 | 6824 | 2000 | 68-3/8" | 1737 | 55-1/3" | 1406 | 68-15/16" | 1751 |
| MB 10000 | 10000 | 2931 | 8510 | 2494 | 68-3/8" | 1737 | 55-1/3" | 1406 | 77-15/16" | 1979 |
| Flue Vent** | Connections | Shipping | Weight | |||||
|---|---|---|---|---|---|---|---|---|
| Model | Cat I Negative | Cat II Negative | Cat IV Positive | Nat. | LP | Water In. | Lbs | Kg |
| MB/MW 2500 | 10" | 12" | 8" | 1-1/2" | 1-1/2" | 4" | 1300 | 590 |
| MB/MW 3000 | 10" | 12" | 8" | 1-1/2" | 1-1/2" | 4" | 1400 | 635 |
| MB/MW 3500 | 12" | 14" | 10" | 2" | 1-1/2" | 4" | 1510 | 685 |
| MB/MW 4000 | 12" | 14" | 10" | 2" | 1-1/2" | 4" | 1570 | 712 |
| MB 5000 | 14" | 14" | 12" | 2" | 1-1/2" | 4" | 2000 | 908 |
| MB 6000 | 12" | 12" | 12" | 2-1/2" | - | 4" | 2726 | 1238 |
| MB 8000 | 14" | 14" | 14" | 3" | - | 6" | 3176 | 1442 |
| MB 10000 | 16" | 16" | 16" | 3" | - | 6" | 3450 | 1566 |
*Ratings reflect boilers only. For boilers efficiency information please visit www.ahridirectory.org
**Diameters may vary based on system design
Literature
Piping Diagram
- BOILER PROTECTION OPTION FOR VARIABLE LOW TEMP THERMOSTATIC MIXING VALVE (H-18 Rev 4).dwg
- BOILER PROTECTION OPTION FOR VARIABLE LOW TEMP THERMOSTATIC MIXING VALVE (H-18 Rev 4).pdf
- SINGLE BOILER, PRIMARY & SECONDARY (H-1 Rev 5).dwg
- SINGLE BOILER, PRIMARY & SECONDARY (H-1 Rev 5).pdf
- SINGLE BOILER, PRIMARY & SECONDARY, LOW TEMP HEAT PUMP & SWIMMING POOL (H-3 REV 6).dwg
- SINGLE BOILER, PRIMARY & SECONDARY, LOW TEMP HEAT PUMP & SWIMMING POOL (H-3 REV 6).pdf
- SINGLE BOILER, PRIMARY & SECONDARY, REVERSE RETURN (H-15 Rev 6).dwg
- SINGLE BOILER, PRIMARY & SECONDARY, REVERSE RETURN (H-15 Rev 6).pdf
- HeatNet Application System Diagrams (HASD-2).pdf
